Hanging Type V Fold Facial Tissue Machine Full Automatic Bottom Output

Brand Name : XINYUN

Model Number : XY-GU-A-A

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : 100000 usd

Payment Terms : T/T

Supply Ability : 500 set per year

Delivery Time : 60 days

Packaging Details : Standard export wooden pallet

Speed : 30-60 bags per minutes

Output paper : hanging type facial tissue paper

Condition : New

Product type : facial paper machine

Voltage : 380V 50HZ

Warranty : 1 Year

Processing type : facial tissue paper production line

Weight : according to the model

Raw material : Jumbo Roll Paper

Application : Paper Industry

Contact Now

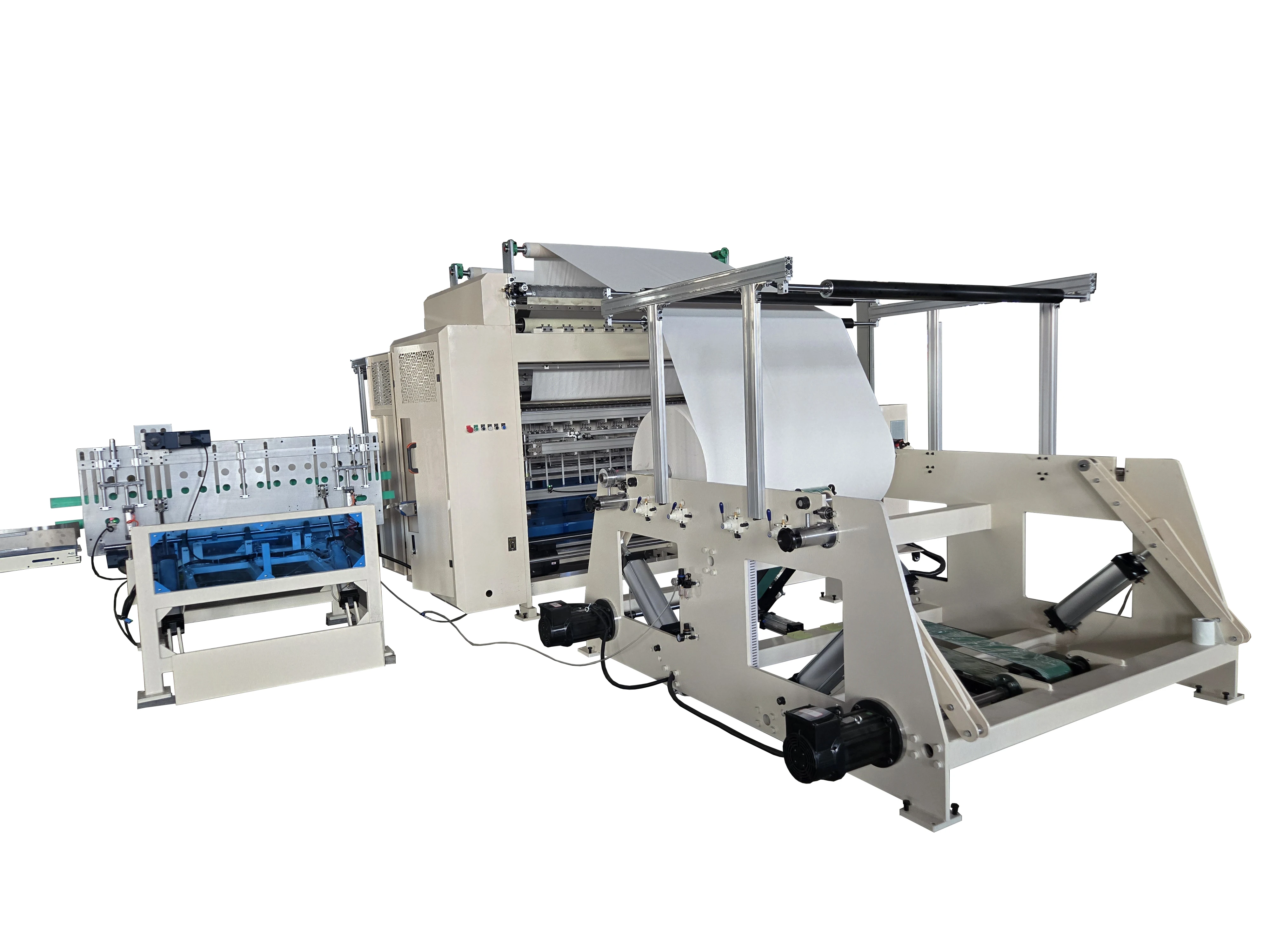

Full Automatic Bottom Output Hanging type V fold Facial Tissue Paper Making Machine Production Line

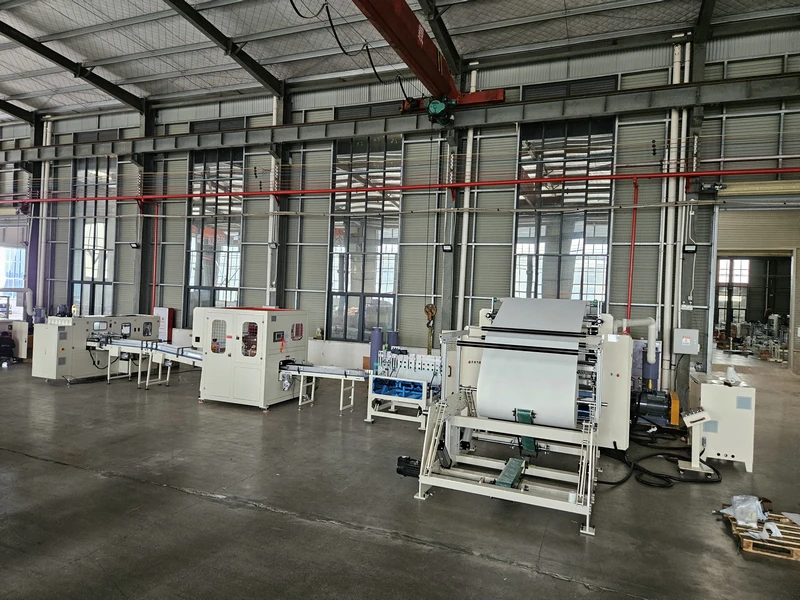

This production line consists of :
XY-GU-20A Automatic Facial Tissue Folding Machine
XY-GU-281 Automatic Facial Tissue Cutting Machine
XY-BT-299 Automatic Hanging Type Facial Tissue Bag Packing Machine
From jumbo roll paper into the finished product, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing hanging type facial tissue.
Hanging Type V Fold Facial Tissue Machine Full Automatic Bottom Output
XY-GU-20A Automatic Facial Tissue Folding Machine

Machine model
XY-GU-20A
Folded size of finished products
100*(120-210)±2mm
Unfold size of finished products
200*210±2mm
The width of jumbo roll paper
1400mm
Diameter of jumbo roll paper
1200mm
Diameter of jumbo roll paper inner core
76.2mm
Daily Output
About 7.5T/22 hours (jumbo roll:three layers and 15g/m²)
Embossing unit
Steel to steel full embossing, Steel to steel edge embossing ,independent pneumatic regulation
Slitting unit
Pneumatic slitting
Pneumatic system
3 HP air compressor ,mini pressure 5kg/cm2PA
Driving system
Timing belt
Voltage
380V 50HZ
Pneumatic system
3 HP air compressor ,mini pressure 5kg/cm2PA

Hanging Type V Fold Facial Tissue Machine Full Automatic Bottom Output

XY-GU-281 Automatic Facial Tissue Cutting Machine

High speed facial tissue cutting machine is an important component equipment of Box-drawing facial tissue production line , which can greatly improve the level of automation and production efficiency of the production line.
The machine is strong, beautifully designed, cut paper precise movements, rolls flat section, and smooth.

Designation
Parameter values
The length of unfinished products
minimum 500mm(or, mini 5lines)
The Height of finished product
30~130mm
Production Speed
20~150cuts/min
Operating speed
20~120cut/min
Round blade outer diameter
Φ610mm
Paper cutting circular knife top speed
980R/min
Cutting size

L(90-250)-W(130-500)-H70-100
Left-over Length
20~65mm
Power
11KW
Power supply
380V 50Hz
Air pressure
0.5~0.8MPa
Machine Size
4600*1700*2500mm
weight
2300~2600kg

Hanging Type V Fold Facial Tissue Machine Full Automatic Bottom Output

XY-BT-299 Automatic Hanging Type Facial Tissue Bag Packing Machine

Design speed: 30 bags/min
Production speed :20-28 bags/min (depending on the specifications)
Power Motor power:12 Kw
Main unit heating power:2.4Kw
Machine weight:1400KG
Packaging qualification rate ≥98%
Dimensions:3750*4890*1550 (length × width × height)
Power type :AC 380 V (volts) 50 Hz (hertz)
Compressed air consumption : 6kg/cm2 0.45m3/min
Machine noise ≤75 decibels (db)
Note: The above data may differ from the actual data due to different packaging materials and other similar situations that cause different machine configuration requirements.

Hanging Type V Fold Facial Tissue Machine Full Automatic Bottom Output

Hanging Type V Fold Facial Tissue Machine Full Automatic Bottom Output
Hanging Type V Fold Facial Tissue Machine Full Automatic Bottom Output
Hanging Type V Fold Facial Tissue Machine Full Automatic Bottom Output
Hanging Type V Fold Facial Tissue Machine Full Automatic Bottom Output
Hanging Type V Fold Facial Tissue Machine Full Automatic Bottom Output
Q: Are you trading company or manufacturer
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to
quantity.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
